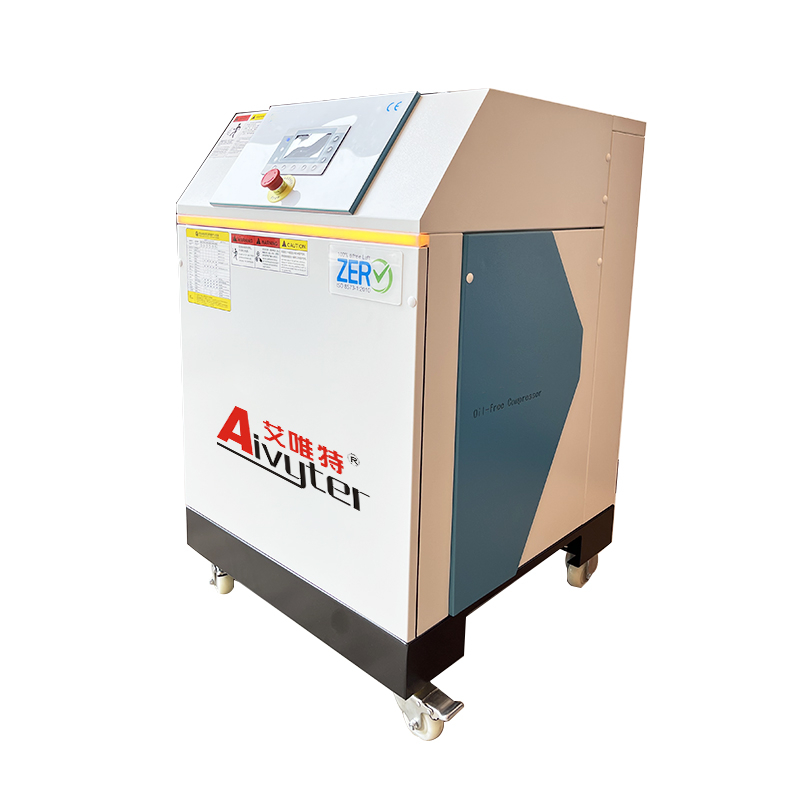

TA02-A8
aivyter
1. Power supply : Low power ,220V 1PH. It can be used directly in places with low electricity requirements, such as residential and commercial areas.
2. Environmental : 100% oil-free, suitable for use in places with high environmental requirements, such as dental clinics, food stores, bakeries, pharmaceutical factories, and so on.
3. Mute: Equipped with soundproof cotton to isolate noise, suitable for household and store use.
4. Intelligent control: Easy to operate, one click on/off.
5. Appearance: Small in size, lightweight, movable, with a sense of design, grand and beautiful.
6. Inbuilt air storage tank to ensure gas supply demand and pressure stable.
7. Customizable colors and logos.
8. Part of internal components are made of stainless steel, keeping a long service life.
| Specification parameters of single unit oil-free vortex air compressor | |||||||
| Model | Maximum exhaust pressure (bar.G) | Volumetric flow rate (FAD)L/min | Power KW | Noise level dB(A) | L * W * H mm | Outlet pipe diameter (inch) | Unit weight (kg) |
| TA02-A8 | 8 | 240 | 2.2 (2.2*1) | 58±2 | 640*660*890 | 1/2" | 150 |
| TA04-A8 | 8 | 408 | 3.7 (3.7*1) | 58±2 | 640*660*890 | 3/4" | 160 |
| TA05-A8 | 8 | 600 | 5.5 (5.5*1) | 58±2 | 640*660*890 | 3/4" | 180 |
| TA02-A10 | 10 | 205 | 2.2 (2.2*1) | 58±2 | 640*660*890 | 1/2" | 150 |
| TA04-A10 | 10 | 350 | 3.7 (3.7*1) | 58±2 | 640*660*890 | 3/4" | 160 |
| Including 24L gas storage tank (T1 series) and 200L gas storage tank (T2 series) | |||||||
| TA02-A8-T1 | 8 | 240 | 2.2 (2.2*1) | 58±2 | 960*660*1360 | 1/2" | 210 |
| TA04-A8-T1 | 8 | 408 | 3.7 (3.7*1) | 58±2 | 960*660*1360 | 1/2" | 230 |
| TA05-A8-T1 | 8 | 600 | 5.5 (5.5*1) | 58±2 | 960*660*1360 | 3/4" | 230 |
| TA02-A10-T1 | 10 | 205 | 2.2 (2.2*1) | 58±2 | 960*660*1360 | 1/2" | 210 |
| TA04-A10-T1 | 10 | 350 | 3.7 (3.7*1) | 58±2 | 960*660*1360 | 1/2" | 230 |
| TA02-A8-T2 | 8 | 240 | 2.2 (2.2*1) | 58±2 | 1340*650*1530 | 1/2" | 260 |
| TA04-A8-T2 | 8 | 408 | 3.7 (3.7*1) | 58±2 | 1340*650*1530 | 3/4" | 270 |
| TA05-A8-T2 | 8 | 600 | 5.5 (5.5*1) | 58±2 | 1340*650*1530 | 3/4" | 290 |
| TA02-A10-T2 | 10 | 205 | 2.2 (2.2*1) | 58±2 | 1340*650*1530 | 1/2" | 260 |
| TA04-A10-T2 | 10 | 350 | 3.7 (3.7*1) | 58±2 | 1340*650*1530 | 3/4" | 270 |
| Including 24L air storage tank with refrigerated dryer, 2 filters (F1 series), 200L air storage tank with refrigerated dryer, 2 filters (F2 series) | |||||||
| TA02-A8-F1 | 8 | 240 | 2.2 (2.2*1) | 58±2 | 960*660*1360 | 3/4" | 280 |
| TA04-A8-F1 | 8 | 408 | 3.7 (3.7*1) | 58±2 | 960*660*1360 | 3/4" | 300 |
| TA05-A8-F1 | 8 | 600 | 5.5 (5.5*1) | 58±2 | 960*660*1360 | 1" | 320 |
| TA02-A10-F1 | 10 | 205 | 2.2 (2.2*1) | 58±2 | 960*660*1360 | 3/4" | 280 |
| TA04-A10-F1 | 10 | 350 | 3.7 (3.7*1) | 58±2 | 960*660*1360 | 3/4" | 300 |
| TA02-A8-F2 | 8 | 240 | 2.2 (2.2*1) | 58±2 | 1340*650*1530 | 3/4" | 330 |
| TA04-A8-F2 | 8 | 408 | 3.7 (3.7*1) | 58±2 | 1340*650*1530 | 3/4" | 350 |
| TA05-A8-F2 | 8 | 600 | 5.5 (5.5*1) | 58±2 | 1340*650*1530 | 1" | 370 |
| TA02-A10-F2 | 10 | 205 | 2.2 (2.2*1) | 58±2 | 1340*650*1530 | 3/4" | 330 |
| TA04-A10-F2 | 10 | 350 | 3.7 (3.7*1) | 58±2 | 1340*650*1530 | 3/4" | 350 |
