Product Advantage：

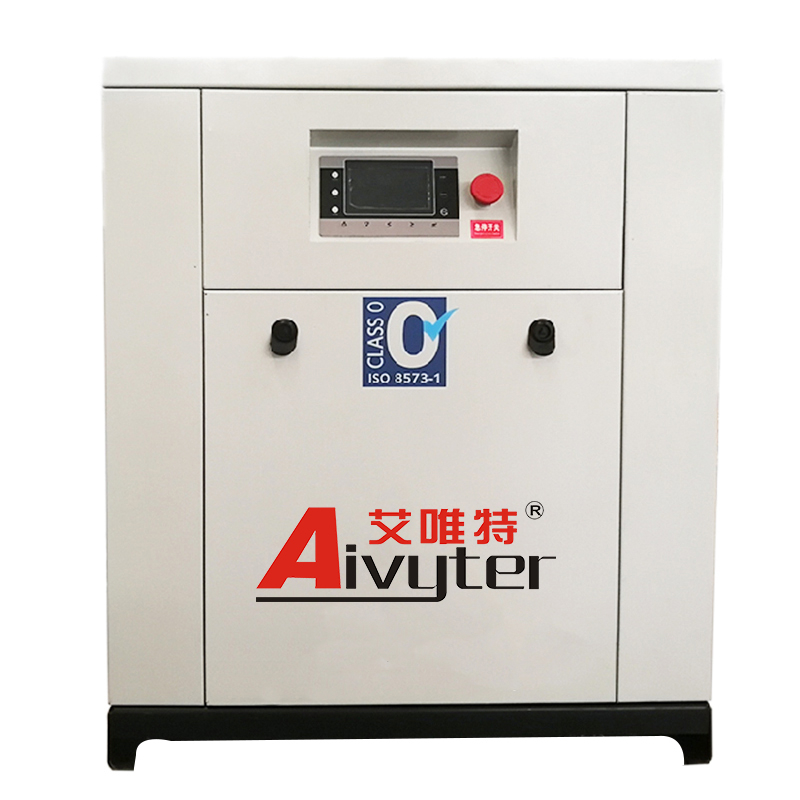

Silent Oilness Oil Free Belt Driven Scroll Air Compressor is designed and manufactured using original imported DMG vortex processing machines, vortex measurement equipment, eccentricity measurement equipment, host testing benches, and whole machine testing benches, ensuring the stability of each production process and the consistency of various indicators. These keywords can be used to describe aivyter Scroll Air Compressor: energy-saving, silent, smooth, lightweight, easy to maintain, clean and oil-free, etc.
Energy saving: The vortex disc continuously compresses, resulting in less ineffective work and low energy consumption, as well as low operating and maintenance costs.
Silent: There is no contact between the moving and stationary discs, and the air is balanced as a whole, with less vibration and low noise.
Stable: High precision of core components, high requirements for rotary bearings, and few components.
Clean and oil-free: The compression chamber is independent, with no lubricating medium inside, and the compressed air is clean, outputting high-quality oil-free compressed air.
High reliability: High precision of core components, high requirements for rotary bearings, and relatively few components;
Small size: small turning radius, high speed, compact structure;
Lightweight: The moving disc, stationary disc, and frame are made of aluminum alloy material;
Low operating costs: fewer vulnerable parts, no cooling oil, no oil and gas separation system, low maintenance costs;
High efficiency: continuous compression, less leakage, and no significant difference in displacement between the low-pressure and high-pressure sections;
Convenient to use: Intelligent control, integrated touch screen PLC display. Long maintenance cycle, convenient maintenance, and no engine heating process in winter;
Product Parameters
Technical parameters of oil-free scroll compressor
| Model | Capacity | Pressure | Motor power | QTY of air end | QTY of motor | Diemensions | Weight | Diameter of air outlet pipe | Inner air tank | Outside air tank | |
| m3/min | Mpa | kW | hp | PCS | PCS | mm | KGS | inch | L | L | |
| D04/08-A1 | 0.3 | 0.8 | 3.0 | 4.0 | 04*1 | 1 | 760*690*820 | 200 | 3/4 | 5 | / |
| D04/08-A4 | 0.4/0.3 | 0.8/1.0 | 3.7 | 5 | 04*1 | 1 | 760*690*820 | 200 | 3/4 | 5 | / |
| D04/08-J3 | 0.4/0.3 | 0.8/1.0 | 3.7 | 5 | 04*1 | 1 | 1400*780*1485 | 450 | 3/4 | / | 200 |
| Q08/08-S1 | 0.8 | 0.8 | 7.5 | 10 | 04*2 | 2 | 1400*700*1200 | 400 | 1 1/2 | 24 | / |
| Q08/08-S1 | 0.8 | 0.8 | 7.5 | 10 | 04*2 | 2 | 1400*780*1485 | 450 | 1 1/2 | / | |
| D06/08-A4 | 0.6/0.4 | 0.8/1.0 | 5.5 | 7 | 0.6*1 | 1 | 760*690*820 | 200 | 3/4 | 5 | / |
| D06/08-J3 | 0.6/0.4 | 0.8/1.0 | 5.5 | 7 | 0.6*1 | 1 | 1400*780*1485 | 450 | 3/4 | / | 200 |
| Z12/08-S1 | 1.2/0.8 | 0.8/1.0 | 11 | 15 | 0.6*2 | 2 | 1400*700*1200 | 350 | 1 1/2 | 24 | / |
| D06/08-J5 | 0.6 | 0.8 | 5.5 | 7 | 0.6*1 | 1 | 1400*780*1485 | 450 | 1 1/2 | / | |
| Z12/08-J5 | 1.2 | 0.8 | 11 | 15 | 0.6*2 | 2 | 1400*780*1485 | 500 | 1 1/2 | / | |
| Z18/08-S1 | 1.8/1.5 | 0.8/1.0 | 16.5 | 22 | 0.6*3 | 3 | 1400*700*1670 | 500 | 1 1/2 | 24 | / |
| Z24/08-S1 | 2.4/2.0 | 0.8/1.0 | 22 | 30 | 0.6*4 | 4 | 1400*1550*1200 | 800 | 1 1/2 | 24*2 | / |
| Z30/08-S1 | 3.0/2.4 | 0.8/1.0 | 27.5 | 37 | 0.6*5 | 5 | 1400*1550*1670 | 1080 | 1 1/2 | / | / |
| Z36/08-S1 | 3.6/3.0 | 0.8/1.0 | 33 | 45 | 0.6*6 | 6 | 1400*1550*1670 | 1200 | 1 1/2 | / | / |
| Z42/08-S1 | 4.2/3.6 | 0.8/1.0 | 38.5 | 52 | 0.6*7 | 7 | 2220*1450*1740 | 1400 | 1 1/2 | / | / |
| Z48/08-S1 | 4.8/4.0 | 0.8/1.0 | 44 | 59 | 0.6*8 | 8 | 2220*1450*1750 | 1520 | 1 1/2 | / | / |
| Z54/08-S1 | 5.4/4.5 | 0.8/1.0 | 49.5 | 67 | 0.6*9 | 9 | 2220*1450*1750 | 1650 | 1 1/2 | / | / |
Product Applications
In terms of air compressors, they are applied in the food processing industry (including gas sources used in the nitrogen manufacturing process for food packaging), pharmaceutical industry, medical industry (including oxygen sources for respiratory and oxygen chamber oxygen production, as well as dental gas sources), precision electronics industry, precision processing equipment, pneumatic robotic arms, flexible automatic technology control systems, electronic chips, biotechnology, and high-quality paint spraying Precision measurement and extended gas source (high-purity oxygen and nitrogen production) systems, etc;
