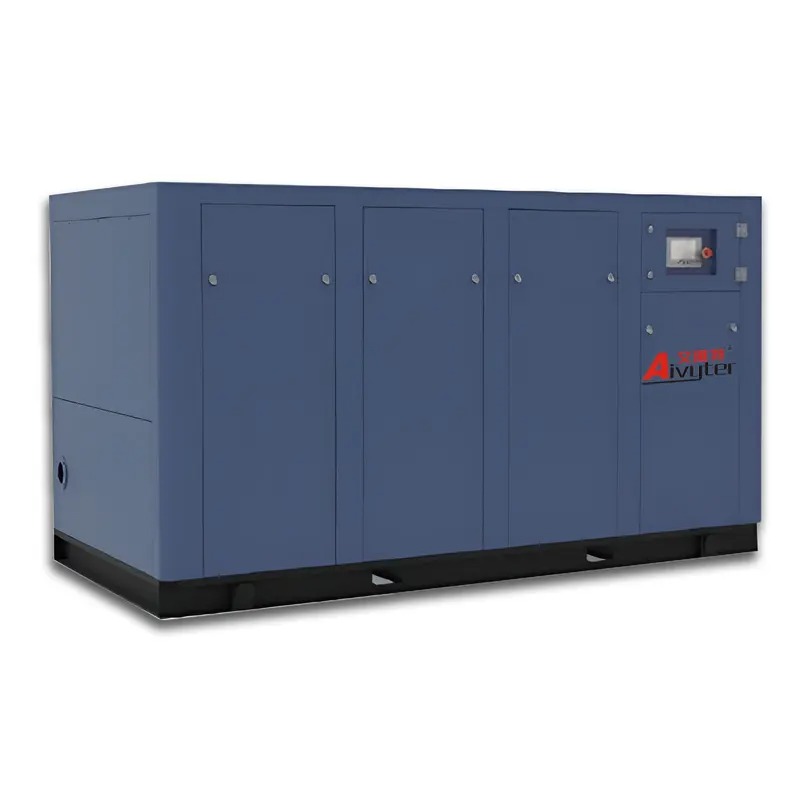

Model: SGPM
Two Stage Rotary Screw Air Compressor with Double Permanent Magnet Motor Drive
The SGPM series Two Stage Rotary Screw Air Compressor features a large rotor design for low-speed, low-noise operation and an optimized equal pressure ratio that enhances both volumetric and adiabatic efficiencies, delivering approximately 15% more displacement than single-stage compressors—making it ideally suited for high-load industrial applications.
37-250kw
DN50-DN125
87-174PSI
250.7-2048CFM

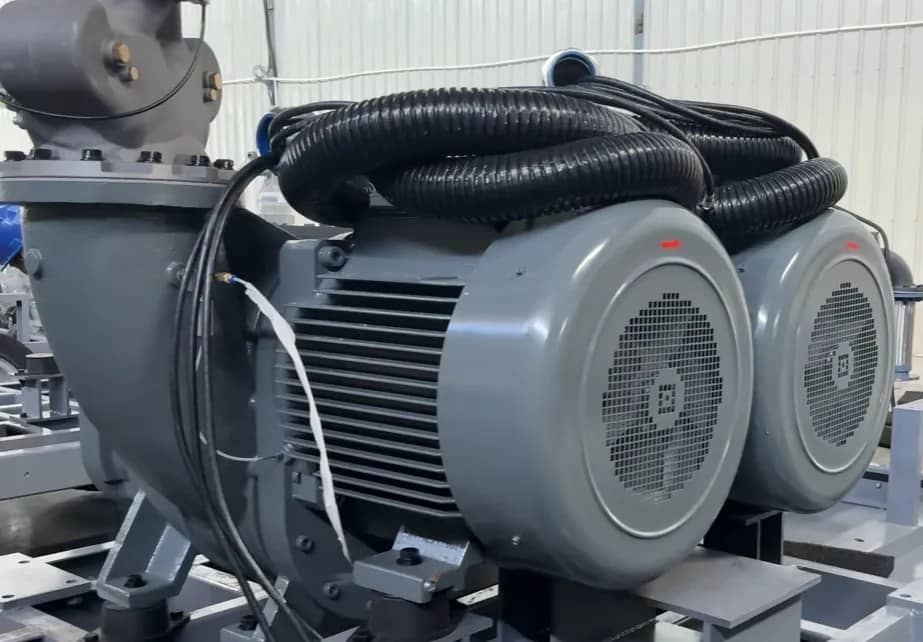

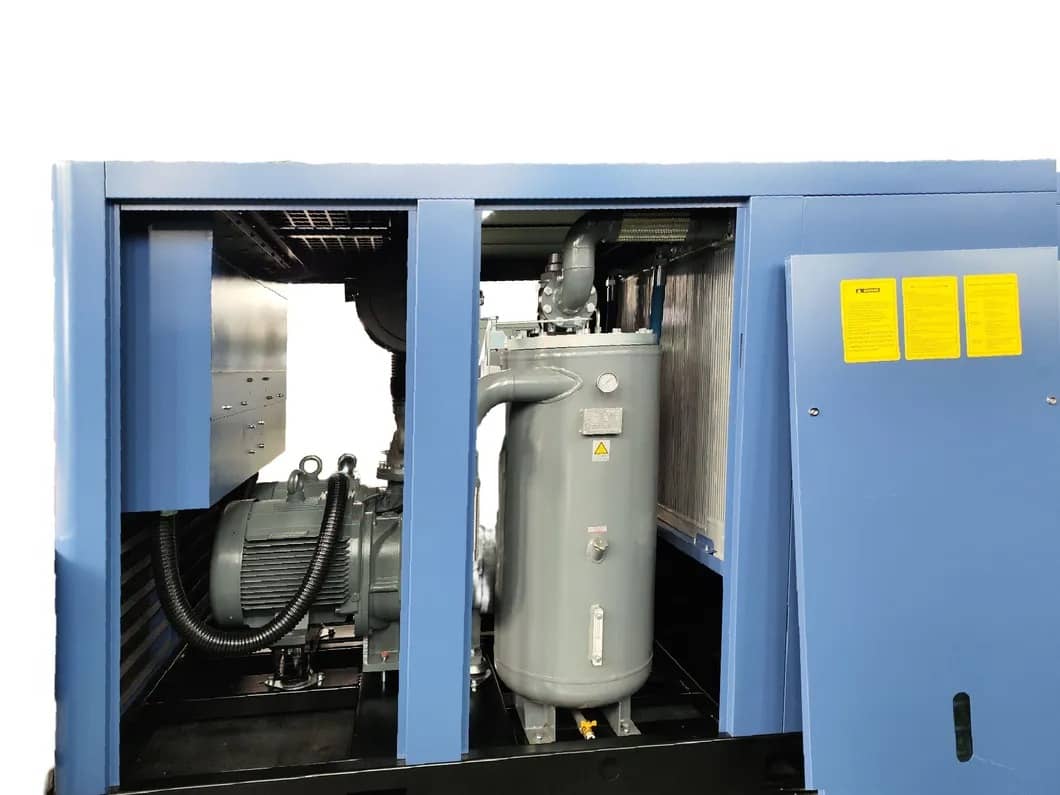

Unique dual permanent magnet motor-driven airend
—————–
SGPM Air Compressor Benefits
More Stable – No transmission trouble
(1)No gearbox: The high-efficiency permanent magnet synchronous motor and the screw rotor adopt an embedded integrated connect-ing shaft structure, without coupling failure or broken gear danger.
(2)No coupling: Two independent permanent magnet motors directly drive two airends without gear transmission, completely eliminating gear pitting.

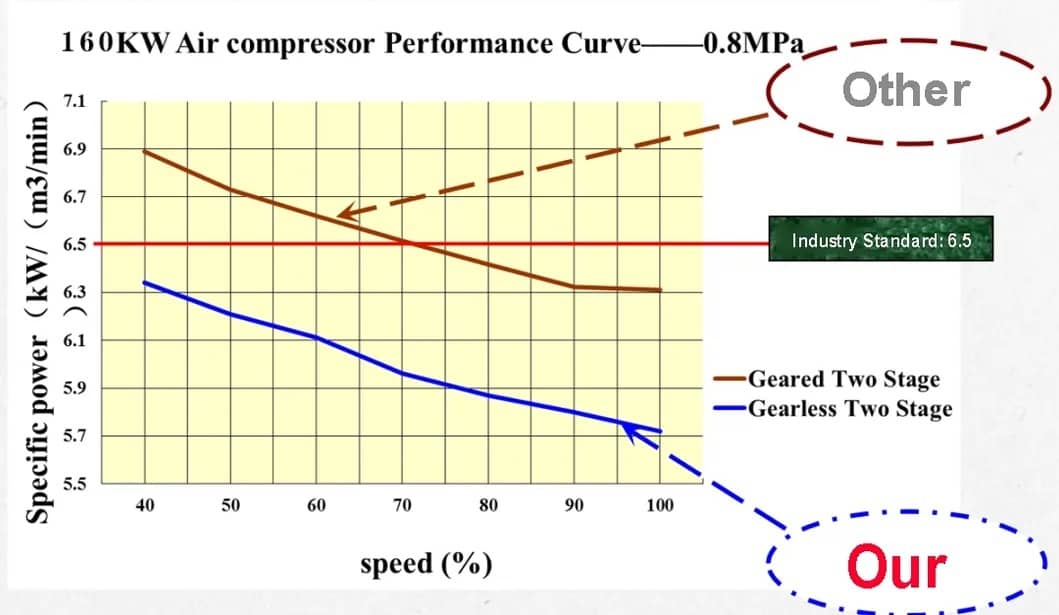

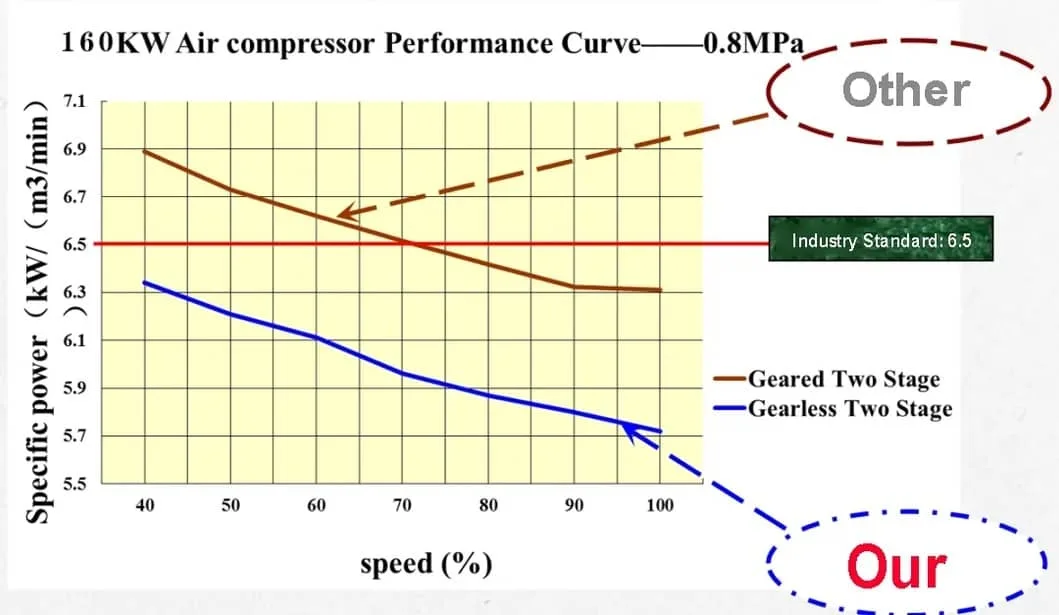

High Efficiency -“0″transmission loss
(1)A high-efficiency permanent magnet synchronous IP54 motor is equipped for excellent energy-savingperformance.
(2)At low frequency and low speed, the permanent magnet synchronous motor continuously maintains highefficiency.
More energy conservation
(1)Independent permanent magnet motor drive, the whole process ofintelligent control, through the control of exhaust pressure and interstage pressure, so that the air end in different speeds, different pressures, always running in the best interstage pressure point.
(2)During operation, the respective optimum running speed is automatically calculated, and through the best matching and balancing of the compression ratio, the compressor is always in the optimum running state and obtains the best effciency.
| Model | Working Pressure | Capacity | Molor Power kW/hp |
Dimension (mm) |
Net Weight (KGS) |
Air Outlet | ||
| PSl | bar | cfm | m/min | |||||
| SGFM 371 | 87 | 6 | 310.7 | 8.8 | 37/50 | 2380*1300*1690 | 1500 | DN50 |
| 102 | 7 | 296.6 | 8.4 | |||||
| 116 | 8 | 282.5 | 8.0 | |||||
| 145 | 10 | 250.7 | 7.1 | |||||
| SGPM 45 | 87 | 6 | 416.7 | 11.8 | 45/60 | 2380*1300*1590 | 1750 | DN50 |
| 102 | 7 | 402.5 | 11.4 | |||||
| 116 | 8 | 377.8 | 10.7 | |||||
| 146 | 10 | 331.9 | 9.4 | |||||
| SGPM 55I | B7 | 6 | 5014 | 14.2 | 55/75 | 2380*1300*1590 | 1750 | DN50 |
| 102 | 7 | 483.7 | 13.7 | |||||
| 116 | 8 | 448.4 | 12.7 | |||||
| 145 | 10 | 413.1 | 11.7 | |||||
| SGPM 751 | 87 | 0 | 600.3 | 17.0 | 75/100 | 2900*1650*1850 | 2650 | DN80 |
| 102 | 7 | 582.6 | 16.5 | |||||
| 116 | 8 | 568.5 | 16.1 | |||||
| 145 | 10 | 452.0 | 128 | |||||
| SGPM 901 | 87 | 6 | 829.8 | 23.5 | 90/120 | 2900*1650*1850 | 2680 | DN80 |
| 102 | 7 | 787.4 | 22.3 | |||||
| 116 | 8 | 727.4 | 20.6 | |||||
| 145 | 10 | 653.2 | 18.5 | |||||
| SGPM 1101I | 87 | 6 | 918.1 | 26.0 | 110/150 | 2900*1650*1850 | 2700 | DN80 |
| 102 | 7 | 8828 | 25.0 | |||||
| 116 | 8 | 847.4 | 24.0 | |||||
| 145 | 10 | 776.8 | 22.0 | |||||
| SGPM 132II | 87 | 6 | 1059.3 | 30.0 | 132/175 | 3100*1800*1950 | 3340 | DN80 |
| 102 | 7 | 1034.6 | 29.3 | |||||
| 116 | 8 | 988.7 | 28.0 | |||||
| 145 | 10 | 865.1 | 24.5 | |||||
| SGPM 1601I | 87 | 6 | 1253.5 | 35.5 | 160/200 | 3100*1800*1950 | 3360 | DN80 |
| 102 | 7 | 1218.2 | 34.5 | |||||
| 116 | 8 | 1193.5 | 33.8 | |||||
| 145 | 10 | 1094.6 | 31.0 | |||||
| SGPM 185II | B7 | 6 | 1447.7 | 41.0 | 185/260 | 3600*1900*2050 | 4400 | CN10D |
| 102 | 7 | 1359.4 | 38.5 | |||||
| 116 | 8 | 1271.2 | 36.0 | |||||
| 145 | 10 | 1129.9 | 32.0 | |||||
| SGPM 200I | 87 | 6 | 1483.0 | 42.0 | 200/268 | E900*1600*8090 | H00 | DN100 |
| 102 | 7 | 1447.7 | 41.0 | |||||
| 116 | 8 | 1412.4 | 40.0 | |||||
| 145 | 10 | 1218.2 | 34.5 | |||||
| SGPM 220II | 102 | 6 | 1765.5 | 50.0 | 220/300 | 4100*2255*2300 | 5120 | DN125 |
| 116 | 7 | 16419 | 46.5 | |||||
| 146 | 8 | 1589.0 | 45.0 | |||||
| 174 | 10 | 1412.4 | 40.0 | |||||
| SGPM 250II | 102 | 6 | 2048.0 | 58.0 | 250/350 | 4100*2255*2300 | 5120 | DN125 |
| 116 | 7 | 1942.1 | 55.0 | |||||
| 145 | 8 | 1871.4 | 53.0 | |||||
| 174 | 10 | 1589.0 | 45.0 |
